Plant Construction


Pandemic issues on the wane, but labor, inflation and equipment availability slow projects.
Part 2

AM King designed and built Mission Produce’s avocado ripening and processing facility in Laredo, Texas. Photo courtesy of AM King

Wayne Labs, Senior Technical Editor

Navigating Design and Construction Today

Food processors see two areas where they need to invest if they want to manage the current economic conditions, says Pat Chisholm, executive vice president, BE&K Building Group. The first helps to define the processor’s role in environmental activities, and the second helps with reduced manpower.

According to Chisholm:

Environmental, Social, and Governance (ESG)—“The food and beverage industry requires a considerable supply of energy and natural resources to do business, not only in fossil fuels, but also in terms of crops, soils, biomass, plastic, steel and minerals. As consumers become increasingly concerned about the sustainability of this industry, we are witnessing a huge shift in our clients considering ESG-related projects for their current and future facilities. Clients are beginning to consider upgrades that include solar panels, closed loop water systems, water treatment facilities, and more efficient packing solutions, among many others.”

Automation—“As labor shortages continue to impact this industry, we are seeing clients increase automation in their processes to offset the need for qualified labor.”

Labor, however, affects AECs as well as food processors. “One unfortunate trend we see emerging currently is a lack of qualified tradesmen to perform the work on these projects,” says Dennis Whipple, electrical design build manager | electrical division, Shambaugh & Son, L.P. “We are experiencing an extreme shortage of electricians. Other trades are experiencing the same.”

In an effort to shorten design/build cycles, AECs are getting away from the design/bid/build strategy and are working toward an EPC (engineer/procure/construct) scenario, says Ed Gerken, PMP, LEED AP, senior project manager, SSOE Group. Clients are often resource constrained, especially regarding STEM degreed employees, and are looking to outsource project delivery to a greater extent.

“One of the biggest trends we continue to see are the advances being made in virtual design,” adds Nathan Arnold, director, client development, Hixson Architecture, Engineering & Process. “We’ve reached the point that today, many clients ask about the extent of BIM (building information modeling) capabilities for their projects.”

For certain, the past pandemic has made remote communications and virtual design practical. “Virtual design and construction (VDC) continues to be a growing execution of projects,” says Don Oberlies, senior director business development, Alberici Constructors. “Early contractor involvement is also growing in popularity as clients have fewer resources to dedicate to project development and need early input for cost and schedule certainty.”

Product, Fixture, Line

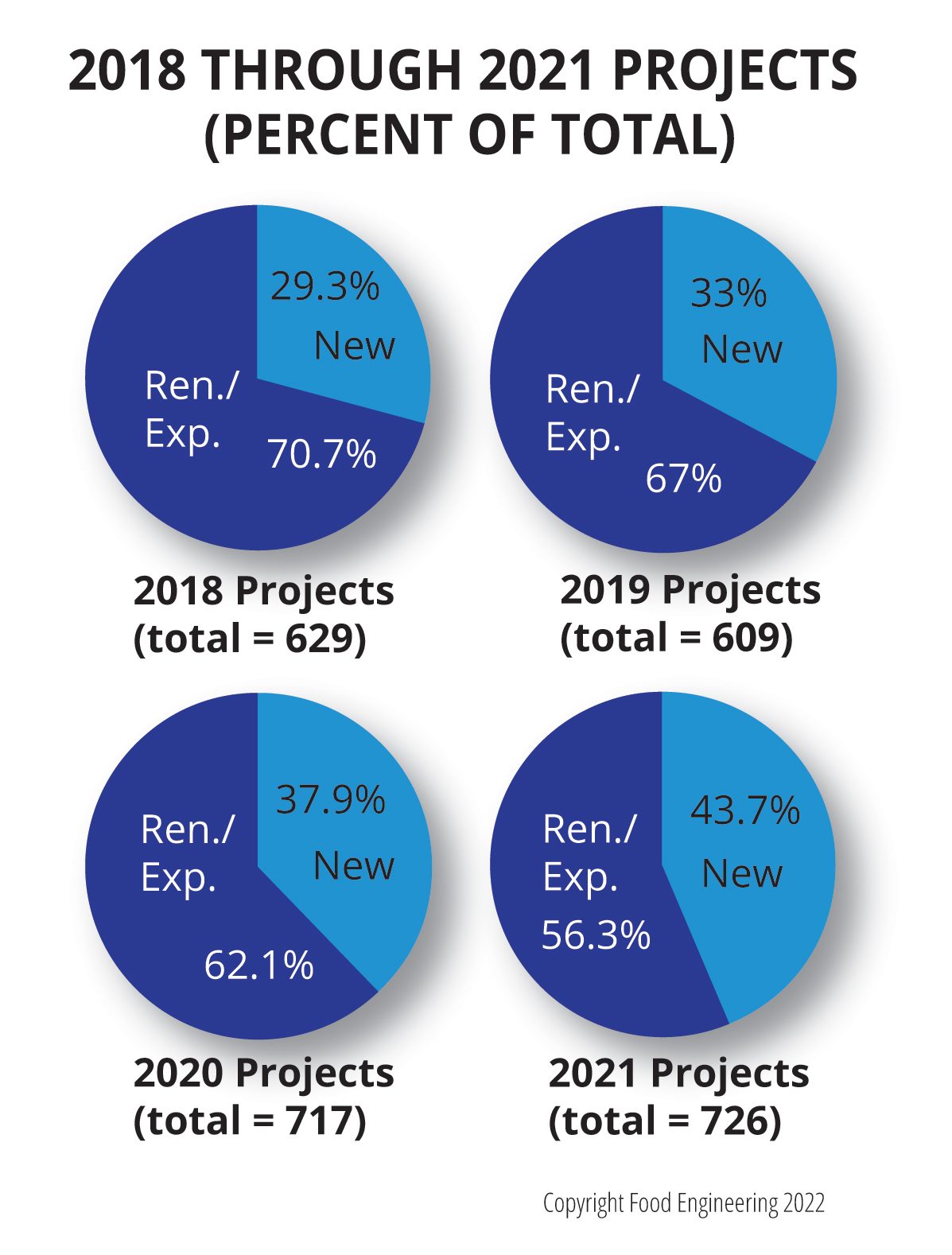

In the last four years that data was recorded for FE’s Plant Construction Surveys, the number of new projects kept increasing compared to renovations and expansions. Could part of this be due to the fact that some older facilities were incapable of being renovated to meet new food safety standards and automation requirements? Source: FOOD ENGINEERING

Product, Azure, Font, Line

Most likely in response to the COVID-19 pandemic, distribution center/warehouse projects reached their highest number in the years of 2021 and 2022 as recorded in last year’s data. Source: FOOD ENGINEERING

Plot, Line, Font

Supply Chain Somewhat Improved—Unless it’s Electrical

Bad news: Does it have a microprocessor? Is it switchgear? Is it a transformer? Is it electrical or electronic in nature? Then, expect delays. Big delays—as long as a year.

“Highest risk in material availability remains in electrical and mechanical components,” says Alberici’s Oberlies. “We do not see a significant improvement in the next 12-18 months.”

Well, considering any product that is built with electrical and electronic components, this is literally the same story I got from at least 75% of the AEC firms participating in this article.

However, the good news is that the overall availability and lead time for most construction materials have improved considerably since the height of the pandemic—except for some select building materials, says Dan Crist, vice president, AM King. Material pricing has also started to stabilize since the pandemic.

How to cope? “Our focus is on expediting design packages related to long lead time items in order to maintain project schedule,” says Crist. “Identifying and providing alternate materials and manufacturers early in the design phase are critical.”

“While supply chain issues have not gone away, they seem to have normalized, or perhaps we are now better adept at working through these challenges and accepting when they occur,” says Black & Veatch’s Ziskind. “Still, there are opportunities to proactively mitigate potential supply chain issues on construction materials. For example, pre-purchasing certain materials with long lead times, such as switchgear, can be advantageous, and a construction firm who had these goods on hand or on order—or able to flex their schedule—has an advantage to better serve manufacturers.”

From a design standpoint, engineering labor, especially experienced, remains in demand, adds Ziskind. Flexibility continues to be important, not only from a facility operations standpoint but also availability of construction materials. Flexible designs can help address issues with material availability.

COVID-19 Spurred Growth of Distribution Centers

For the last couple of years, the FE Plant Construction Survey Tables showed a large increase in the number of distribution center (DC) construction (see “Distribution Center/Warehouse and Alcoholic Beverages 2012 through 2021”). “The supply chain challenges that impacted the food industry during COVID resulted in a significant increase in the demand for cold storage,” says CMC Design-Build’s Larose. “Concurrently, there was a sudden shift of real estate investment dollars into this segment, which further fueled the number of projects.”

“The extraordinary number of large distribution centers and cold storage facilities that came online in 2021 was unlike anything we have seen in recent years,” says BE&K’s Chisholm. “Not only were there many new projects, but the average size of these facilities also experienced a significant increase.”

According to Chisholm, these increases can be attributed to the impact of COVID-19 on:

• Food chain supply—There was an obvious increase in new projects to help shore up the supply chain due to global supply interruptions.

• Consumer purchase behavior—As a result of the pandemic, the home grocery delivery market exploded. As a result, there was an increased need for large distribution and cold storage facilities closer to the consumers they served.

“Now we are seeing a pause among food and beverage clients for the immediate future,” says Chisholm. “While these projects will eventually be built, we believe the market experienced over-construction because of the pandemic and now demand is waning. Current projects that are underway tend to be smaller in scope.”

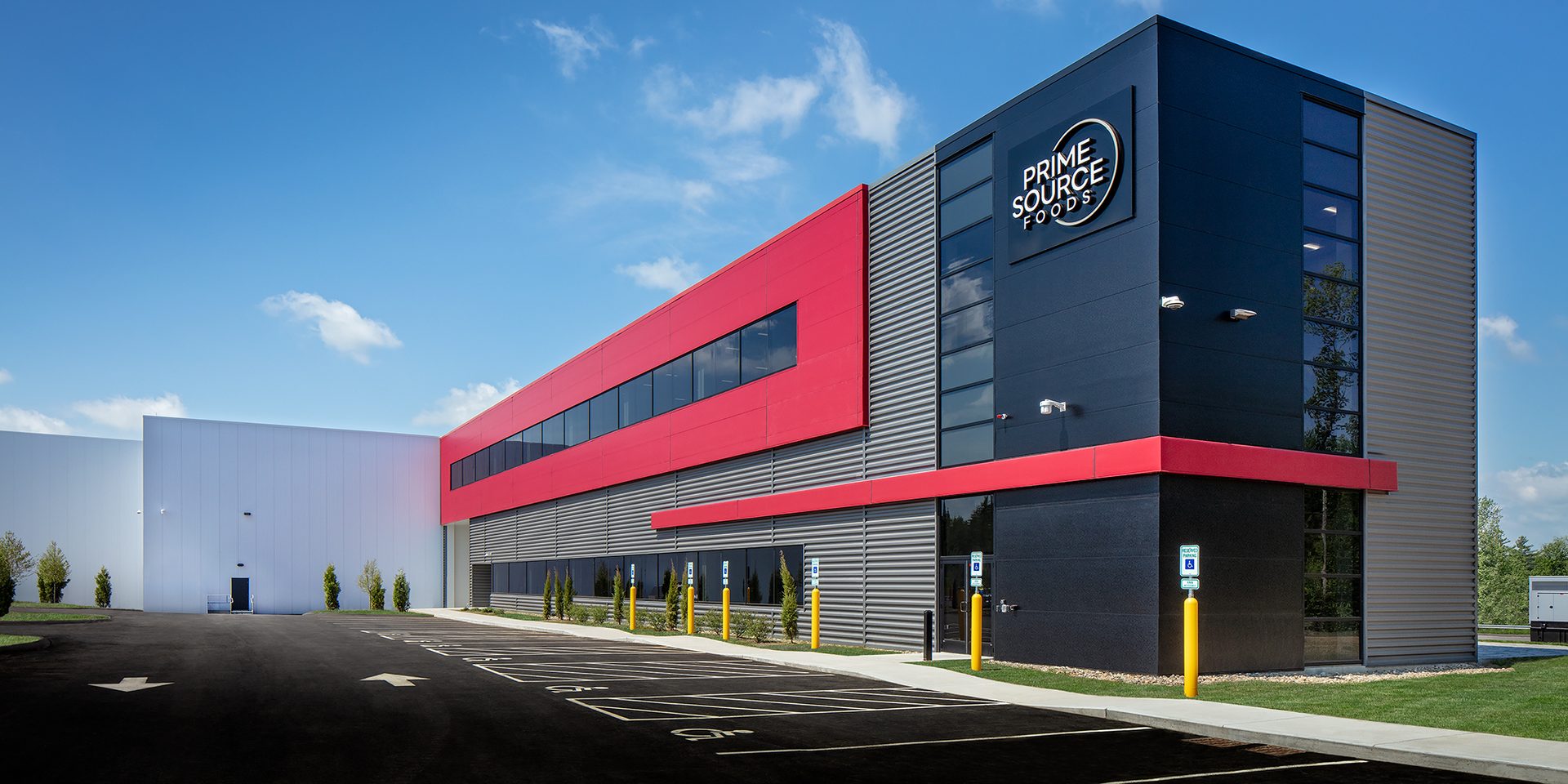

CMC Design-Build constructed Prime Source Foods’ combined food service distribution and protein portioning facility in Londonderry, N.H. Photo courtesy of Andy Caulfield

Prime Source Foods’ combined food service distribution and protein portioning facility

Will DCs continue to see growth? If my experience is like most consumers, I’m willing to bet that home delivery is an option that is here to stay and pays for itself—even with the $7.95 delivery charge my grocery chain charges. Coming directly from the warehouse, produce is fresher—not picked over—and the two hours not spent in the store trying to find all the items on my list is worth the delivery charge.

“We continue to see growth in the direct-to-consumer market,” says Food Plant Engineering’s Redmond. “During the pandemic, a shift occurred in e-commerce as businesses pivoted to serve their customers. This continues, so we have seen our clients accommodate this need by adding or expanding distribution centers.”

“I believe that with the overall need for cold storage space in the industry, there is still more to come, but with the money getting more expensive to borrow and more difficult to get, we could see that cool off some,” says Tippmann.

Continued reshoring and onshoring will help keep DCs moving product. “During the pandemic, consumers experienced shortages—or perceived shortages—of key grocery, pharmaceuticals, and household items,” says Greg Verhoff, LEED AP, business leader, SSOE Group. “This raised awareness regarding the level of U.S. dependence upon global supply chains, which can be subject to issues well outside of our control. Combined with the significant increase of online purchasing, it led to the repatriation of production capacity back to North America and increased demand for distribution centers. Ongoing geopolitical tensions are very likely to continue driving the repatriation trend, especially in key markets such as semiconductors and pharmaceuticals.”

Greenfield or Brownfield?

During the last few years of the FE survey, the number of greenfield (new) sites increased compared to reworking older sites (brownfield) (see “2018 through 2021 Projects (Percent of Total”). A big reason in the immediate past was that several existing and brownfield sites really didn’t make it easy to conform to FSMA requirements. Today, there are several reasons for greenfield sites.

“Greenfield builds are popular, as owners can control just about every aspect of the final facility,” says Black & Veatch’s Ziskind. “They provide maximum flexibility to meet current and future requirements. In short, greenfield sites can be truly purpose-built. Greenfield builds also offer opportunities to address more sustainable operations by building in such features/infrastructure. Greenfield facilities may require less maintenance. The scale, process, infrastructure needs and schedule can all weigh into the greenfield vs. brownfield approach. Having ‘shovel ready’ sites, such as those in food parks where infrastructure is readily available, can help manufacturers move quickly in a greenfield scenario.”

Automation considerations in case packing and palletizing

From a robotic automation standpoint, it is very common for companies to begin their automation journey in the case packing and palletizing areas. These areas are typically very labor intensive and are associated with repetitive tasks. These applications are easier to automate due to the availability of historically successful solutions, some of which have become highly standardized within the industry. This provides a certain level of comfort for customers to dip their toe into the automation waters before diving headfirst into a fully autonomous facility.

Cost is often a sticking point. Understanding the current costs associated with various parts of your process will help you properly perform a cost analysis for potential automated upgrades. When it comes to ROI, we can’t overstate the importance of having the ability to monitor the manufacturing process and make data-driven decisions based on the harvested data results. Data is great. But if the data isn’t presented in a way that is digestible, the result isn’t a more efficient process. Creating measurable and trackable metrics will often allow manufacturers to maximize OEE, eliminate scrap and waste, and more efficiently track products.

For those not ready to fully invest in an automated solution, automation as a service (AaaS) may be the best option. AaaS integrates robotic process automation and business process automation to provide companies with automation solutions at an affordable monthly cost that improves how manufacturing or business processes perform across all business units. AaaS also improves employee engagement, from front-line workers to top-level management.

AaaS allows for manufacturers to secure automation solutions as a part of their operating budget rather than as a capital expenditure. This allows the manufacturer to apply labor and compare an hourly rental rate as compared to operators. This model helps fill the gap in times of spiked production or when short term automation solutions are required for reasons of seasonality.

—Dean Elkins, Senior Director, Advanced Automation, Gray Solutions, A Gray Company

CMC Design-Build tackled the facility expansion of Kettle Cuisine’s RTE food manufacturing plant in Everett, Wash. Photo courtesy of Anton Benedikt, AB Photo & Video

CMC Design-Build tackled the facility expansion of Kettle Cuisine’s RTE food manufacturing

As new food products are developed and commercialized, greenfield sites may offer more flexibility as opposed to trying to fit a new process into an existing facility designed for a different purpose, adds Ziskind.

“Many factors contribute to the decision of greenfield or brownfield,” says Gray’s Cundiff. “Given a range of projects covering greenfield and brownfield sites, we see that objectives can be achieved with either option as long as the tradeoffs are understood very early in the planning process. Speed to market, design flexibility and capital cost always seem to be at the forefront of discussions when considering brownfield versus greenfield.”

Indeed, costs and trying to shoehorn processes and food safety into an old facility may not be practical. “With costs just as high—or sometimes higher—to retrofit a facility, it has made increasingly more sense for our clients to build new than to purchase older facilities,” says Hixson’s Arnold. “One driver: It’s easier to build a greenfield facility to meet modern hygienic food safety standards than to renovate an existing building to meet those standards. In addition, population shifts over time have led clients to choose to build operations around the available workforce.”

Food Safety and Security

FDA’s FSMA came into being in 2011, and AEC firms are up to speed on designing structures that comply. As Chisholm points out, many FSMA hygienic requirements are very similar to what has been engineered into pharma facilities for years. Some of these include locations for gowning, handwashing and applying PPE at the entrance to facilities. Cleanable surfaces, such as resinous floors, make cleaning easier.

Track and trace technologies, for the most part, have been well implemented, and new technologies that allow for continual sampling of certain pathogens as opposed to manual, scheduled swabbing provide earlier notification of potential contamination, says Ziskind.

CRB’s Moses sees an increased awareness and investment in food safety and security. Traceability is well established, needing fewer changes, but more emphasis has been put into cleaning and hygienic practices such that even smaller operations are looking at captive shoe programs and uniforms.

“We have experienced a steady workload related to facility renovations and site improvements involving enhanced plant sanitation and security,” says Telly Davis, SSOE Group senior project manager. Examples include site access control upgrades, hardening building perimeter entrances, data/fire/security system (DFS) upgrades, building automation system (BAS) upgrades, water quality improvements, and expanded clean-in-place (CIP) capabilities.

Alternative Proteins

While the total alternative protein market is projected at a growth rate (CAGR) of 12.4% from 2022-2029, reaching a dollar value of $36.61 billion in 2029, according to Research and Markets (R&M), AEC firms are a little more skeptical—or should we say realistic? The R&M study includes all types of alternative proteins (plants, insects, microbial) in human and animal food—except lab-cultured meats. Another optimistic R&M study entitled, “Lab-grown Meat Market by Type, Distribution Channel, Application - Global Forecast to 2035,” shows an expected CAGR of 24.1% from 2025 to 2035, reaching a value of $1.99 billion by 2035.

“Despite widespread media fanfare regarding alternative proteins, there seems to be a great deal of skepticism and outright resistance among consumers,” says SSOE’s Veter. “Our firm has not seen much capital investment by clients in projects for the increased use of alternative proteins. In the near term, this appears to remain a fringe element of the market.”

“As hot as this market was in 2021 and 2022, we’re seeing a flattening at the present time,” says BE&K’s Chisholm. “Many of the firms in this sector are startups facing multiple current challenges. The first is the obvious financial climate where funding and loan availability have slowed. This is nearly identical to what we are seeing with startups and first-time manufacturers in the pharmaceutical and biotech industry. Second, consumer pricing for alternative proteins tends to be higher than that for traditional proteins. When Americans are already concerned with the recent rise in grocery prices, non-essential costs are the first to go. Third, there remain challenges with the taste and texture of these products that need to be resolved to produce the desired mass appeal. We do not see alternative proteins going away, but we do see a pause until the financial climate improves.”

“The alternative protein market is losing ground but will continue to be a player for those who want the option,” says Andrew Nelson, ESI Group USA VP business development. “The traditional packers have dipped their toes in this world, but don’t see a threat to the traditional model. The only difference in plant operations is the equipment used to process the plant-based materials.”

“There’s been tremendous change for alternative proteins over the last year, driven by a need to be commercially successful, as well as sustainable,” says CRB’s Moses. For facilities, this has had several impacts. Manufacturers are looking to “right size” their investments, being strategic about the types of capabilities needed. They’re also considering production more at suppliers or contract manufacturers. The types of line equipment may also change toward more bulk handling and packaging capabilities.

Sustainability and looking for opportunities to “upcycle” a waste stream that would otherwise have a cost or environmental impact to dispose of is a key issue when considering alternative protein production, adds Ziskind.

In general, facilities that process alternative proteins can have more complex designs from the perspective of allergen separation, HVAC controls, etc. Alternative proteins are usually more heavily processed, and their production is more complex than conventional proteins, adds Hixson’s Arnold.

Designing and Coordinating Packaging Automation for Variety Packs

Automation has been fundamental in realizing a successful food and beverage packaging facility for a long time. In many cases, however, automating lines in a piecemeal fashion has resulted in islands of automation. Here are three observations/trends that engineering firms need to evaluate in any project, especially for packaging houses that want to run variety packs.

Trend 1—Dealing with the well-intentioned but disjointed results of automating isolated machine center assets on a packaging line. Making only incremental improvements in the performance of existing islands of automation by upgrading them with more functionality is problematic. Unit operations upgrades are important, but they’re still just tactical improvements. They can improve operator safety. They may reduce maintenance. And they’ll likely improve the data collected around related—but isolated—areas on the packaging line.

But the net effect when machine centers in the packaging line aren’t “talking” to each other—not properly integrated—is they’re simply waiting for product to show up as opposed to seamlessly and continuously advancing the packaging process.

Islands of automation operating independently in what is intended to be a continuous series of calculated, deliberately timed and interdependent events is a less-than-strategic outcome.

Trend 2—Retrofitting an existing packaging line with a centralized automation solution. Auditing the uptime performance of an existing line with an eye to improving its runnability and overall throughput can be accomplished by implementing a strategic automation solution. The overarching objective is to improve profitability by stabilizing machine efficiency (OEE) and—by extension—the efficiency of the entire line. Improving profit-making throughput and stabilizing predictable line uptime is the aim. Line OEE has the effect of keeping the filler operation performing in a stable state. Stable filler operations allow the post-filler machine centers and all the downstream inter-machine conveyance (introducing, transitioning, discharging and pulling away product) to perform in their targeted ideal rate range.

Some of the existing unit operations may need to be replaced, and the ones that remain need to be capable of performing up to the standard built into a modern centralized automation command and control solution.

This is not an inexpensive option. But in the right conditions it’s superior to the alternatives of repeated line anomalies and inefficiencies, finding and keeping manual labor and compromised packing line uptime.

Trend 3—Empowering food and beverage brand owners and co-packers to respond to consumers’ expectations for choice with automated variety-pack packaging solutions. The proliferation of SKUs brought about by consumers’ expectations for choice and variety has a profound impact on food and beverage packaging automation. Brand owners introduce new or additional product alternatives to an existing product lineup to attract more customers and increase sales. Adding SKUs on a small scale is seldom practical or profitable.

High-volume packaging operations often have the scale to integrate a variety pack solution—but need to build in the flexibility, accuracy, speed and automation. The depalletizing and sortation unit operations ahead of the case-packing operations forming the variety packs are often the most complex. And the repalletizing operations before warehousing and shipping need to accommodate the multi-stream flow to pull off the variety pack solution profitably.

We’re seeing three or four flavors of a given beverage packaged together in a shelf-ready 12- or 24-pack format. All of these integrated operations necessarily take place at high speed. The automation needs to be flexible enough to accommodate any of the anomalies that might occur upstream on any of the three or four lines feeding the case-packer. The automation solution is complex. But the outcome the retailer and consumer see is simply a colorful mix of accurately merged and perfectly aligned individual cans or bottles properly palletized and labeled.

—Tom Wiersma, Business Development Manager, IPM (Integrated Packaging Machinery)

Automation: Use It or Lose Out

With all the problem issues we just discussed, automation is a must for survival today. “Most of our clients are focused on implementing different degrees of automation and for many, it’s at the forefront of their growth plans,” says AM King’s Sawicki. These companies realize the need to do more with fewer employees and continue to invest heavily in the automation of their facilities. Clients that have historically invested in automation have seen effective ROI but those that lack experience with it are slow to move forward, Sawicki adds.

“We see an increase in automation in processing, packaging and warehousing/logistics due to hiring challenges and retaining team members,” says Gleeson’s Rens. Though these facilities take longer to build, there is an increase in storage, shipping and packaging automation, adds Rens.

“We are seeing much smaller operations looking into automation than in past years,” says CMC’s Larose. “Previously, it was unusual to see automation in small to mid-sized facilities but reduced labor availability combined with increased wages has made investments in automation attractive to a broader audience.”

“Automation continues to gain momentum,” says Moses. “Issues with labor availability are present throughout facilities, not just for repetitive or routine tasks, so there are opportunities now in every department. We’re seeing original equipment manufacturers (OEMs) look for ways to help companies automate maintenance, like remote monitoring for issues and sending technicians to perform preventative maintenance.”

And automation is not just for the plant floor. “Warehousing, whether it be work in process or finished goods, is where we see immediate need and payback,” says Mark Livesay, VP of automated warehousing at ESI Group USA. Customers are seeing a three-to-five-year payback on AS/RS rack supported warehouses, both ambient and frozen. Increased production requires increased warehouse capacity and with labor shortages and land utilization issues, a rack-supported AS/RS (approximately 110 ft. tall) utilizes one-third the area of a conventional warehouse. FE

For more on automation, see “Automation Considerations In Case Packing and Palletizing” and “Designing and Coordinating Packaging Automation for Variety Packs.”
